Narrow Aisle Forklift
Features：
1. This electric forklift can work in extremely narrow channels with a minimum working width of 1700mm (depending on the forklift model and pallet size).
2. The rated load ranges from 1500kg to 3000kg.
3. The lifting height of this narrow aisle forklift can reach 12.5 meters.

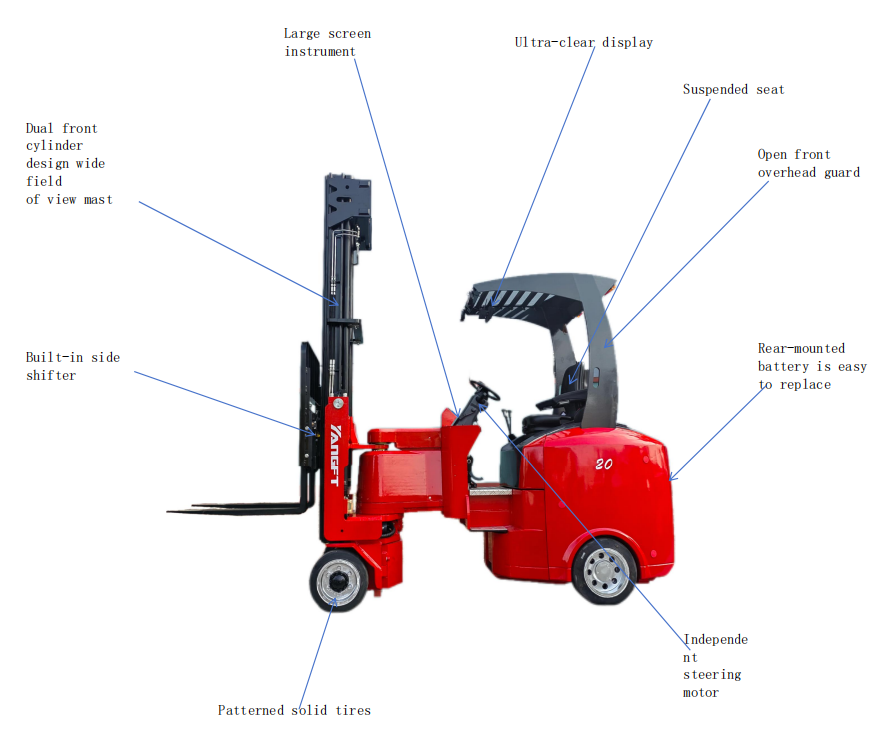

4. With the design of open view mast and double front cylinders, this material handling equipment provides optimal visibility.
5. Standard front-end camera makes operation more accurate and efficient.
6. A new generation controller from Italy ZAPI is equipped as standard configuration, the use of the latest vector control algorithm leads to increased energy efficiency.
7. The large LED instrument panel features functions of power display, timing and fault diagnosis. Human-computer interaction interface enables operation more simple and efficient.
 |
Standard front-end camera makes your operation more accurate and efficient |
 |
Standardly equipped with a new generation controller from Italy ZAPI, which adopts the latest vector algorithm and is more energy-saving |
 |
The new large-screen LED instrument has power display |
 |
Standard suspension seat to reduce driving fatigue |
Qingdao YangFT Narrow Aisle Forklift Parameter List(1.5 Tons to 3.0 Tons)
| CHARACTERISTICS | Item | NO. | Item | Unit | Parameter | Parameter | Parameter | |
| CAPACITY | 1 | Rated Capacity | Q | kg | 1500 | 2000 | 2500 | |
| LOAD CENTER | 2 | Standard load center distance | C | mm | 500 | 500 | 500 | |
| SYSTEM | 3 | SYSTEM | AC | AC | AC | |||
| POWER | 4 | Battery | lithium battery | Lead-acid/ lithium battery |
Lead-acid/ lithium battery |
|||
| DIMENSIONS | 3 STAGE FULL FREE LIFT MAST | 5 | Mast Lifting Height | h3 | mm | 4500-8200 | 4500-10000 | 4500-12400 |
| 6 | Lifting height of rated weight | mm | 3000 | 3000 | 3000 | |||
| 7 | Mast Free Lifting Height | h2 | mm | See mast specifications table | See mast specifications table | See mast specifications table | ||
| 8 | Mast height | h1 | mm | See mast specifications table | See mast specifications table | See mast specifications table | ||
| 9 | Mast height at max lifting time | h4 | mm | See mast specifications table | See mast specifications table | See mast specifications table | ||
| 10 | Mast tilt angle (forward/rear tilt) | α/β | ° | 1/3 | 1/3 | 2/4 | ||
| FORKLIFT SIZE | 11 | Total length(without FORK) | L2 | mm | 2715 | 2780 | 2800 | |
| 12 | Total width | b1/b2 | mm | 1000 | 1250 | 1400 | ||
| 13 | Overhead guard height | h6 | mm | 2400 | 2400 | 2400 | ||
| FORK | 14 | T*W*L | mm | 40*122*960 | 40*122*960 | 40*122*960 | ||
| 15 | Fork carriage width | b3 | mm | 880 | 1080 | 1080 | ||
| 16 | Fork outside width (mini) | b4 | mm | 244 | 244 | 244 | ||
| 17 | Fork outside width (MAX) | b5 | mm | 840 | 1040 | 1040 | ||
| MINI STACKING AISLE WITDTH | 18 | Pallet lateral width 800*1200/1000*1200 | mm | 1650/1850 | 1800/2000 | 2000/2200 | ||
| TURNING ANGLE | 19 | TURNING ANGLE | δ | ° | 210 | 210 | 210 | |
| TYRE SIZE | 20 | FRONT | mm | 412*127 | 412*178 | 412*178 | ||
| 21 | REAR | mm | 457*152 | 457*178 | 457*1178 | |||
| WHEELBASE | 22 | WHEELBASE | Y | mm | 1812 | 1895 | 1895 | |
| PERFORMANCE | TRAVEL SPEED | 23 | LOAD/NO LOAD | km/h | 10/12 | 10/12 | 10/12 | |
| LIFT SPEED | 24 | LOAD/NO LOAD | mm/s | 350/430 | 350/430 | 330/400 | ||
| LOW SPEED | 25 | LOAD/NO LOAD | mm/s | 400/340 | 400/340 | 400/340 | ||
| GRADEABILITY | 26 | LOAD/NO LOAD | % | 8/10 | 10/10 | 10/10 | ||
| BRAKE | 27 | Mechanical/Hydraulic | Hydraulic | Hydraulic | Hydraulic | |||
| MANUAL BRAKE | 28 | Mechanical/Hydraulic | Mechanical | Mechanical | Mechanical | |||
| SERVICE WEIGHT | 29 | WITH BATTERY | kg | 6500 | 6900 | 7200 | ||
| POWER | LEAD ACID BATTERY | 30 | Electric tension/capacity | V/Ah | 48/420 | 80/400 | 80/400 | |
| LITHIUM BATTERY | 31 | Electric tension/capacity（Optional） | V/Ah | 48/400 | 80/410 | 80/410 | ||
| MOTOR | 32 | Drive motors | kW | 10 | 11 | 11 | ||
| 33 | Lifting motor | kW | 10 | 14 | 14 |
